Production Process

Payazob kaveh complex production is planned based on ISO/TS 16949 to supply OEM market. Also It is now the best iranian casting manufacturer in producing Gray Iron and Ductile Iron Parts for passenger cars and heavy duty vehicles.
Based on Payazob Kaveh quality standards with using the great producing equipments and laboratories, Is so enthusiastic and Interested for producing, Supplying and export all of customer orders and requests to every place in the world.

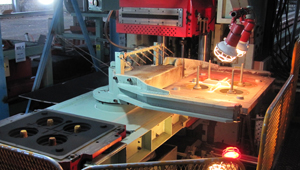

• Line1: Horizontal Flaskless moduling Machine with moduling dimentions of 700x600x(180-250) mm

• Line2: Horizontal Flaskless moduling Machine with moduling dimentions of 700x600x(180-250) mm

• Line3: Disamatic Moduling Machine 2013 with Moduling dimentions of 750x535x(120-405) mm

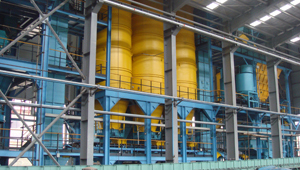

• Two Fully Automatic eirich Sand Plant

• The Capacity of each Sant Plant 60 Ton/Hour

Main technical specification for 4.0t MF induction furnace for Iron melting & holding:

1. Normal capacity: 4.0 tone
2. Normal melting power: 2500 kW
3. Holding power: 300 kW
4. Frequency: 250 Hz
5. Melting rate: 4.2 ± 3% t/hr

LABs

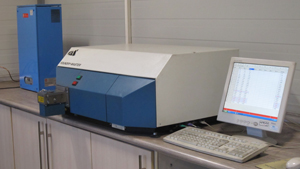

• Spectrometers

• Metallography

• Sand Testing
